CCGT 060204 ER-BC LC435D

Cutting Turning Indexable inserts Turning

Ordernumber

6413130

Indexable insert for turning, internal & external

The grade LCP15T is suitable (main application) for steels, with the secondary application stainless steels.

The chip former BC has a steep rake angle, especially suitable for applications with a tendency to vibrate (boring bar). Exact application details can be found in product data.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	ER-BC
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	LC435D
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	Drehen-ISO
M1 main M – Stainless steel, M1 Material classification: 1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24) 1.4305 (X8CrNiS18-9) 1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10) 1.4404 (X3CrNiMo17-12-2) 1.4541 (X6CrNiTi18-10) 1.4571 (X6CrNiMoTi17-12-2) 1.4841 (X15CrNiSi25-20) 1.4958 (X5NiCrAlTi31-20)	100 - 180
M2 main M – Stainless steel, M2 Material classification: 1.4362 (X2CrNiN23-4 (Ally 2304)) 1.4462 (X2CrNiMoN22-5-3) 1.4501 (X2CrNiMoCuWN25-7-4) 1.4871 (X53CrMnNiN21-9) 1.4310 (X9CrNi18-8, X10CrNi18-8)	70 - 160

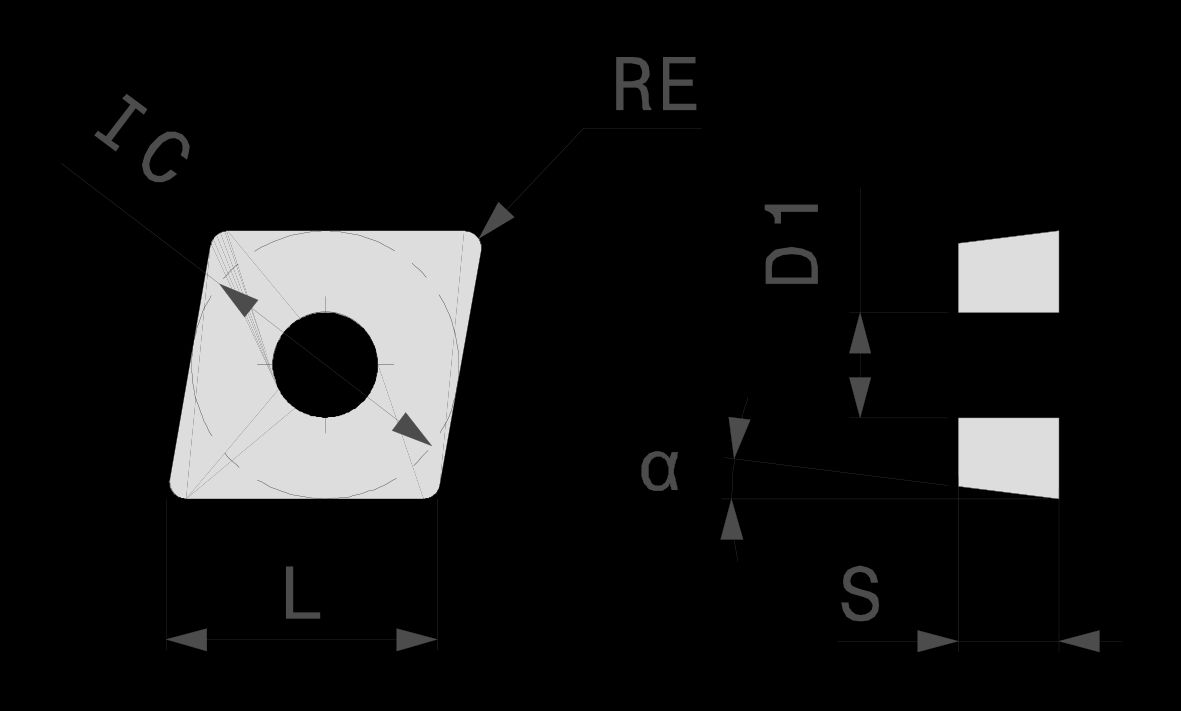

corner angles [EPSR]	80
clearance angle main cutting edge [AN]	7
length of cutting edge [L]	6.4
inner circle [IC]	6,35
cutting edge height [S]	2.38
corner radius [RE]	0.4
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	R
insert height [S1]	2.38
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	LC435D
coating [COATN] Description of coating.	CVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
S1 secondary S – Super alloys, S1 Material classification: 3.7024 (Ti99.5) 3.7025x (Ti99.8) 3.7034 (Ti99.7)	20 - 40
S2 secondary S – Super alloys, S2 Material classification: 3.7115.1 (TiAl5Sn2.5) 3.7124 (TiCu2) 3.7164 (TiAl6V4) 3.7165 (TiAl6V4) 3.7174 (TiAl6V4Sn2)	15 - 35
S3 secondary S – Super alloys, S3 Material classification: 1.3912 (D1) 1.3926 (FeNi48)	25 - 45
S4 secondary S – Super alloys, S4 Material classification: 2.4375 (NiCu30Al3Ti) 2.4642 (NiCr30Fe) 2.4665 (NiCr22Fe18Mo) 2.4668 (NiCr19Fe19Nb5Mo3) 2.4669 (NiCr15Fe7Ti2Al) 2.4858 (NiFe30Cr21Mo3) 2.4819 (NiMo16Cr15W) 2.4856 (NiCr22Mo9Nb)	15 - 40
coating coating type CVD or PVD.	MT-Fräser
insert size The size of the plate is specified in millimetres.	CCGT 0602
edges/ insert Number of usable cutting edges per indexable insert.	2
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	CCGT
